Cummins Generator Radiator
Repair, Recoring & New Supply — Mumbai
Copper-brass and aluminium radiator repair, core recoring, and new radiator supply for all Cummins DG set models from 125 KVA to 1200 KVA. 6BTA, QSB, QSL9, K19, KTA38-G5, KTA50 engines. Pickup & delivery across Mumbai. 6-month warranty on all work.
About Cummins DG Set Radiators
Cummins is the most widely used international brand for medium to large DG sets in India — especially in data centres, hospitals, IT parks, and industrial plants. Cummins DG sets span the widest KVA range of any brand — from 125 KVA to 1200 KVA — and use both copper-brass and aluminium radiators depending on the engine series and model year. Ajanta Radiators has deep experience repairing and recoring both types at our Worli, Mumbai workshop.
Alt text: "Cummins 500 KVA K19 DG set radiator repair at Ajanta Radiators Worli Mumbai"
Cummins Engine Series — Radiator Type
- 6BTA 5.9 (125 KVA) — Copper-brass, older design, excellent repairability
- QSB series (82.5–160 KVA) — Copper-brass, modern design with improved fins
- QSL9 (200–250 KVA) — Copper-brass, 4-row core, common in Indian hospitals
- NTA855 / K19 (320–500 KVA) — Copper-brass or aluminium by model year
- QST30 (625–750 KVA) — Often aluminium core with brass tanks
- KTA38-G5 (1000 KVA) — Heavy-duty aluminium, remote radiator possible
- KTA50 (1200 KVA) — Large aluminium, upgradeable to copper-brass core
Key Points for Cummins Radiator Repair
- Older Cummins (6BTA, NTA855) use copper-brass — easy to repair and recore
- Newer QSK and QST series often use aluminium — needs TIG welding or recoring
- K19 and KTA series known for header tank stress cracks under thermal cycling
- Aluminium radiators on 24×7 sets (data centres) benefit most from copper-brass upgrade
- Remote radiator setups on large KTA sets also serviced by Ajanta
- Both copper-brass and aluminium cores in stock for faster Cummins turnaround
Cummins DG Set Model & KVA Coverage
| Cummins Engine / Model | KVA | Radiator Type | Common Issue | Service |
|---|---|---|---|---|
| Cummins 6BTA 5.9 | 82.5–125 KVA | Copper-Brass | Top tank cracks, hose leaks | Repair · Recore · New |
| Cummins QSB 6.7 | 125–160 KVA | Copper-Brass | Core scale buildup, fin corrosion | Repair · Recore · New |
| Cummins QSL9 | 200–250 KVA | Copper-Brass | Tube-to-header joint failure | Repair · Recore · New |
| Cummins NTA855-G | 320 KVA | Both Types | Header stress cracks | Repair · Recore · New |
| Cummins K19-G | 380–500 KVA | Both Types | K19 known for header tank cracks | Repair · Recore · New |
| Cummins QST30-G | 625–750 KVA | Aluminium | Fin corrosion, electrolytic leaks | Repair · Recore · New · Upgrade |
| Cummins QSK19-G | 625–750 KVA | Both Types | Core blockage, tube failure | Repair · Recore · New |
| Cummins KTA38-G5 | 900–1000 KVA | Aluminium | Electrolytic corrosion, inlet cracks | Repair · Recore · New · Upgrade |
| Cummins KTA50-G3 | 1100–1200 KVA | Aluminium | Large core damage, pinhole leaks | Repair · Recore · New · Upgrade |
Looking for an exact radiator reference? BANCO A046L404 for Cummins 6BTAA5.9G13, 125–160 KVA →
Also see the exact BANCO A056P113 reference marked Cummins 82.5 KVA, with supplied core size 27 × 29 →
Don't see your model? WhatsApp us your Cummins engine model number →

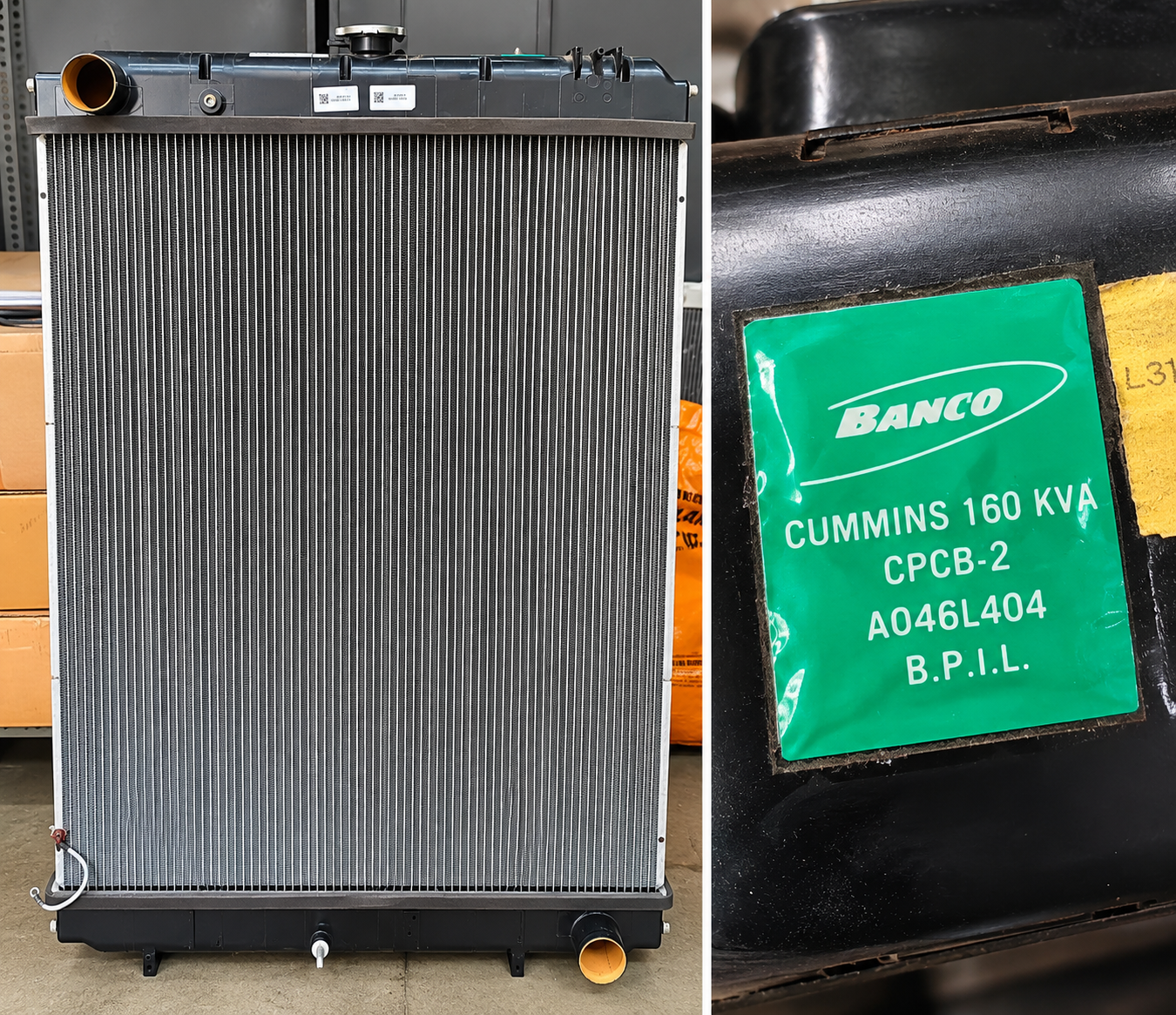

BANCO A046L404 Cummins Radiator — 6BTAA5.9G13, 125–160 KVA
Looking for a BANCO A046L404 radiator for a Cummins 6BTAA5.9G13 engine or a 125–160 KVA Cummins DG set? This section identifies the exact radiator reference shown in the supplied Ajanta Radiators photograph. The radiator label visibly identifies CUMMINS 160 KVA, CPCB-2, A046L404 and B.P.I.L.. The supplied core-size reference is 39 × 29.
A046L404 Radiator Specifications & Application
The A046L404 is an exact radiator part-number reference associated with the Cummins 6BTAA5.9G13 engine application in the 125–160 KVA range. The supplied unit is marked for Cummins 160 KVA. This makes the part number useful when searching for a replacement radiator, radiator repair, radiator recoring or a new radiator manufactured to the original sample and fitment.
| Reference | Verified / Supplied Detail |
|---|---|
| Radiator part number | A046L404 |
| Radiator marking | BANCO |
| Cummins engine application | 6BTAA5.9G13 |
| DG set application | 125–160 KVA |
| Visible rating on supplied label | Cummins 160 KVA |
| Label reference | CPCB-2 / B.P.I.L. |
| Core size | 39 × 29 |
| Available radiator services | Inspection · Repair · Recore · New replacement |
A046L404 Part Number Search
If your old radiator is marked A046L404, share a clear photograph of the radiator and label so the original configuration can be checked before repair or replacement.
A046L40439 × 29 Core Reference
The supplied unit has a stated 39 × 29 core-size reference. Overall radiator dimensions and mounting details should be verified from the actual unit before fabrication.
Core 39 × 29Repair, Recore or Replacement
Ajanta Radiators can inspect an A046L404 unit for leakage, blocked or damaged core, tank condition and fitment, then recommend repair, recoring or new replacement manufacture.
Mumbai · Repair · RecoreNeed a Cummins A046L404 radiator in Mumbai?
Send the A046L404 part number, Cummins engine model, DG set KVA rating and clear radiator photographs on WhatsApp. Ajanta Radiators can assess the radiator and quote for Cummins radiator repair, core replacement, recoring or a new radiator made to the required dimensions and connections.
Frequently Asked Questions About the A046L404 Cummins Radiator
A046L404 is a radiator part-number reference associated with Cummins 6BTAA5.9G13 applications in the 125–160 KVA range. The supplied radiator label identifies Cummins 160 KVA, CPCB-2, A046L404 and B.P.I.L.
The A046L404 radiator reference is associated with the Cummins 6BTAA5.9G13 engine application. Public product listings associate it with the 125–160 KVA range, while the supplied radiator label shows Cummins 160 KVA.
The supplied A046L404 radiator has a stated core-size reference of 39 × 29. Before manufacturing or replacement, Ajanta Radiators recommends confirming the complete radiator dimensions, mounting points, tank connections and installation clearance from the original unit.
Yes. Ajanta Radiators can inspect the A046L404 radiator and determine whether repair, core replacement or complete new radiator manufacture is appropriate based on the condition and original fitment.
Fitment note: Part-number matching is the starting point for identification. Final replacement fitment should be verified against the original radiator and its physical dimensions, mounting arrangement, inlet/outlet connections and clearance. The 39 × 29 core reference above is the measurement supplied for this unit.

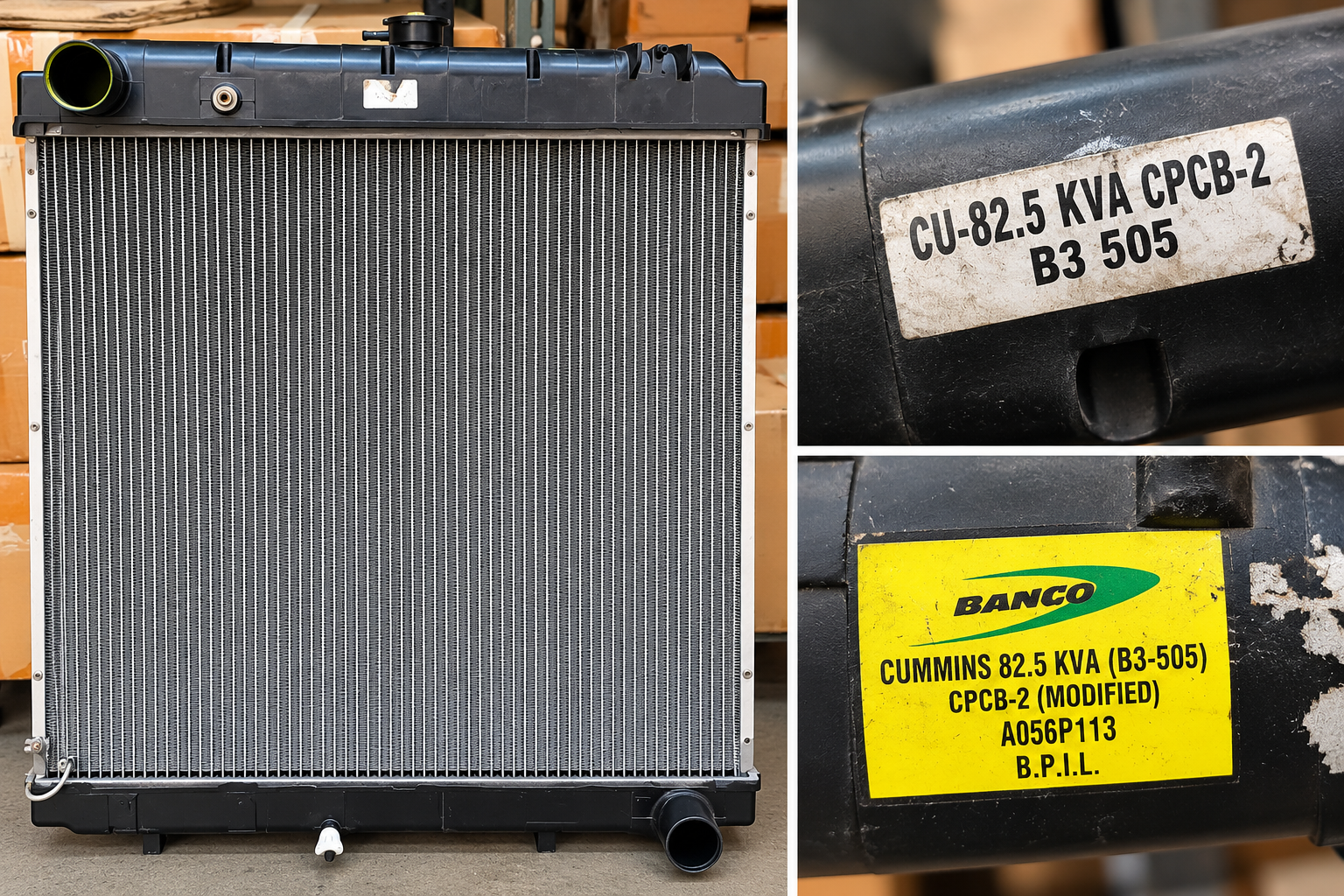

BANCO A056P113 Cummins Radiator — 82.5 KVA, Core 27 × 29
Looking for a BANCO A056P113 radiator for a Cummins 82.5 KVA DG set? The supplied BANCO label identifies CUMMINS 82.5 KVA, B3-505, CPCB-2 (MODIFIED), A056P113 and B.P.I.L.. The supplied core-size reference is 27 × 29.
A056P113 Radiator Specifications & Application
The A056P113 is the radiator part-number reference visible on the supplied BANCO radiator. The label identifies the unit as Cummins 82.5 KVA and shows B3-505, CPCB-2 (MODIFIED) and B.P.I.L.. The supplied core-size reference is 27 × 29. The engine model is not assumed here; final fitment should be checked against the original radiator, mounting arrangement and connections.
| Reference | Verified / Supplied Detail |
|---|---|
| Radiator part number | A056P113 |
| Radiator marking | BANCO |
| Visible Cummins application | 82.5 KVA |
| Visible label reference | B3-505 |
| Emission / label marking | CPCB-2 (MODIFIED) |
| Label reference | B.P.I.L. |
| Core size | 27 × 29 |
| Available radiator services | Inspection · Repair · Recore · New replacement |
A056P113 Part Number Search
If your radiator is marked A056P113, send a clear photograph of the radiator and label so the original configuration can be checked before repair or replacement.
A056P11327 × 29 Core Reference
The supplied unit has a stated 27 × 29 core-size reference. Overall radiator dimensions, mounting points and connection positions should be verified from the actual unit before fabrication.
Core 27 × 29Repair, Recore or Replacement
Ajanta Radiators can inspect an A056P113 unit for leakage, blocked or damaged core, tank condition and fitment, then recommend repair, recoring or new replacement manufacture.
Mumbai · Repair · RecoreNeed a Cummins A056P113 radiator in Mumbai?
Send the A056P113 part number, Cummins KVA rating and clear radiator photographs on WhatsApp. Ajanta Radiators can assess the radiator and quote for Cummins radiator repair, core replacement, recoring or a new radiator made to the required dimensions and connections.
Frequently Asked Questions About the A056P113 Cummins Radiator
A056P113 is the radiator part-number reference visible on the supplied BANCO radiator. Its label identifies the unit as Cummins 82.5 KVA and also shows B3-505, CPCB-2 (MODIFIED) and B.P.I.L.
The supplied A056P113 radiator has a stated core-size reference of 27 × 29. Overall radiator dimensions and mounting details should still be checked against the original unit before replacement.
The supplied radiator label identifies it as a Cummins 82.5 KVA application. The exact engine model is not assumed from the photograph; final fitment should be verified using the original radiator, mounting points, connections and dimensions.
Yes. Ajanta Radiators can inspect the A056P113 radiator for leakage, core blockage, corrosion and tank or connection condition, then recommend repair, recoring or new replacement manufacture based on the actual unit.
Fitment note: Part-number matching is the starting point for identification. Final replacement fitment should be verified against the original radiator and its physical dimensions, mounting arrangement, inlet/outlet connections and clearance. The 27 × 29 core reference above is the measurement supplied for this unit.
Common Cummins Radiator Problems We Fix
🔩 K19 & KTA Header Tank Stress Cracks
The Cummins K19 and KTA series are known for stress cracks at the header tank-to-core joint under thermal cycling in continuous-duty operation. We repair or replace the header tanks and pressure test to full operating pressure.
🌊 Aluminium Core Electrolytic Corrosion
Newer Cummins QST30 and KTA models with aluminium cores develop electrolytic corrosion in Mumbai's coastal environment — pinhole leaks appear over time. We replace the aluminium core or upgrade to copper-brass for longer life.
💧 Coolant Leak at Inlet/Outlet Joints
The inlet and outlet fitting joints on Cummins radiator tanks are a common leak point on QSB and QSL9 series. We replace or re-solder the fitting assembly to eliminate the leak permanently.
🟤 Core Fin Corrosion — QSL9 Series
QSL9 radiators used as backup DG sets in data centres show fin corrosion from acidic coolant (overdue coolant change). We replace the core fins or fully recore as needed to restore cooling capacity.
🌡️ Overheating at High Load — 500 KVA+
K19 and KTA38 sets running at 80–100% load overheat when the core is partially blocked by scale. A full flush and descaling, or recore where needed, restores cooling to original specification.
🔧 Remote Radiator Pipe Connection Leaks
Large Cummins KTA50 sets sometimes use remote radiators with extended coolant piping. We repair both the radiator core and the pipe connection joints at the radiator inlet and outlet.
Alt text: "Cummins K19 500 KVA generator radiator header tank crack repair — Ajanta Radiators Mumbai"
Cummins Radiator — Copper-Brass or Aluminium?
Cummins is the only major DG set brand that uses both types across its range. Knowing which type your set has determines the repair approach and whether an upgrade makes sense.
Copper-Brass Cummins Radiator
6BTA · QSB · QSL9 · NTA855 · Older K19- Common on sets manufactured before 2010
- 6BTA, QSB, QSL9, NTA855 — all copper-brass
- Repaired by soldering — fast, lower cost
- Excellent longevity in Mumbai's coastal conditions
- Recoring: new copper-brass core in existing brass tanks
- Best choice for 24×7 continuous running gensets
✓ Repair: straightforward soldering. Recore: 2–4 days
Aluminium Cummins Radiator
QST30 · QSK · KTA38 · KTA50 · Newer Models- Common on sets manufactured after 2010, higher KVA
- QST30, QSK19, KTA38-G5, KTA50 — aluminium core
- Repair by TIG welding or epoxy — more complex
- Prone to electrolytic corrosion near Mumbai coast
- Copper-brass upgrade strongly recommended for 24×7 sets
- Upgrade gives 2–3x longer service life in humid conditions
✓ For 24×7 data centre / hospital sets — upgrade to copper-brass
Our Services for Cummins DG Set Radiators
Copper-Brass Cummins Radiator Repair
Leak detection, pressure testing, and soldering repair for all copper-brass Cummins radiators — 6BTA, QSB, QSL9, NTA855, K19 series. Tank cracks, tube failures, header leaks — all repaired in-house at our Worli workshop. See our dedicated leakage repair page →
All Copper-Brass Cummins ModelsAluminium Cummins Radiator Repair
TIG welding and epoxy repair for aluminium radiators on QST30, QSK, KTA38, KTA50 series. For extensive corrosion or multiple pinhole leaks, we replace the core or offer a copper-brass upgrade for longer life.
QST30 · KTA38 · KTA50 · QSK SeriesCore Recoring — All Cummins Models
When the Cummins radiator core is corroded, scaled, or has multiple failures — we fit a new copper-brass or aluminium core into your existing tanks. 30–50% cheaper than a new radiator with like-new performance. Full core replacement details →
125–1200 KVA · All Engine SeriesAluminium to Copper-Brass Upgrade
For Cummins QST30, KTA38, KTA50 sets running 12+ hours daily in data centres, hospitals, and factories — we replace the original aluminium core with a heavy-duty copper-brass core. Better repairability, longer life in Mumbai's coastal climate. Highly recommended for 24×7 prime power sets.
⭐ Most Recommended for 24×7 SetsNew Cummins Radiator Supply
We manufacture new copper-brass and aluminium radiators for all Cummins DG set models — from 6BTA (125 KVA) to KTA50 (1200 KVA). Made to original Cummins specifications. Ready in 3–7 working days depending on size. New supply details →
OEM-Spec · 125–1200 KVAPickup & Delivery — Mumbai
We collect Cummins DG set radiators from anywhere in Mumbai — BKC, Andheri, Thane, Navi Mumbai, Worli, Dharavi, Dombivli, Bhiwandi, Borivali. Returned repaired with 6-month warranty. For large KTA50 radiators please WhatsApp first.
Pan-Mumbai · 6-Month WarrantyAlt text: "Cummins K19 DG set radiator after copper-brass core recoring — Ajanta Radiators Worli Mumbai"
Why Choose Ajanta Radiators for Cummins DG Sets
Years Experience
Established 1970, Worli Mumbai. We have been repairing and manufacturing radiators for Cummins DG sets across all engine series since the brand entered the Indian market.
Cummins Models
6BTA to KTA50 — every Cummins engine series from 125 KVA to 1200 KVA. Both copper-brass and aluminium types serviced under one roof.
Core Types In-House
Copper-brass and aluminium cores both manufactured in our Worli workshop. Not outsourced — direct quality control and faster turnaround for your Cummins radiator.
Warranty
6-month warranty on every Cummins radiator repair, recore, and new supply. Fault within 6 months — we fix it at no charge.
Pressure Tested
Every Cummins radiator pressure tested to operating pressure before delivery. We don't dispatch a radiator we aren't confident about.
Pickup & Delivery
We collect from anywhere in Mumbai and return the repaired Cummins radiator to your site. WhatsApp us your address and engine details.
Cummins Generator Radiator Manufacturer, Repair & Core Replacement in India
Ajanta Radiators is not only a Cummins radiator repair workshop — we are a radiator manufacturer for industrial cooling applications. For Cummins diesel generator sets, gensets and power-generation units, we provide complete solutions: new radiator manufacturing, radiator core replacement, leakage repair, aluminium radiator repair, copper-brass radiator recoring and custom radiator supply.
Cummins Generator Radiator Manufacturer
New Cummins DG set radiators manufactured as per sample, drawing, dimensions, KVA rating or engine model. Suitable for Cummins 6BTA, QSB, QSL9, NTA855, K19, QST30, KTA38 and KTA50 engines.
New Manufacturing · OEM-Type FitmentGenset Radiator Core Replacement
Heavy-duty core replacement for blocked, corroded, leaking or damaged Cummins radiator cores. We fit copper-brass or aluminium cores depending on application, running hours and site conditions.
Core Recoring · 125–1200 KVAPan-India & Export Enquiries
Based in Worli, Mumbai, we supply Cummins DG radiator solutions across India. Customers can send radiator photos, dimensions, part numbers or old samples for quotation and manufacturing.
Mumbai · India · Export EnquiriesCummins DG Radiator Services for High-Intent Buyer Searches
This page is built for customers searching for exact commercial services such as Cummins generator radiator repair, Cummins radiator recoring, Cummins DG set radiator manufacturer, Cummins 500 KVA radiator, K19 radiator repair, KTA38 radiator repair and KTA50 radiator replacement.
Cummins DG Set Radiator Repair
Leak repair, pressure testing, soldering, welding and tank repair for Cummins generator radiators.
Cummins Generator Radiator Core
New copper-brass and aluminium radiator cores manufactured and fitted as per original dimensions.
Cummins K19 Radiator Repair
Special focus on 380 KVA to 500 KVA Cummins K19 radiator header cracks, core blockage and recoring.
Cummins KTA38 / KTA50 Radiator
Large 1000 KVA and 1200 KVA radiator repair, recoring, aluminium replacement and copper-brass upgrade.
Technical Details for Cummins DG Set Radiator Recoring
For serious industrial buyers, maintenance engineers and purchase teams, we check the radiator technically before quoting. This helps avoid wrong-fit radiators, repeat leakage and overheating after installation.
| Inspection Point | What We Check | Why It Matters |
|---|---|---|
| Core Size | Height, width, thickness, number of rows and tube layout | Ensures exact fitment and correct cooling capacity |
| Material | Copper-brass or aluminium construction | Decides repair method, recoring material and expected life |
| Tank Condition | Header tank cracks, inlet/outlet necks, cap neck, mounting points | Weak tanks can cause repeat leakage after core replacement |
| Pressure Test | Leak testing before and after repair | Confirms radiator is ready for generator operation |
| Airflow Side | Fin damage, dust choking, oil contamination and blocked airflow | Blocked fins cause overheating even if coolant side is clean |
| Coolant Side | Rust, scale, sludge and chemical corrosion inside tubes | Internal blockage is a major cause of full-load overheating |
Linked Cummins Page Inside the DG Set Radiator SEO Hub
This Cummins page should link strongly to the main pillar page and all service pages. This helps Google understand that Ajanta Radiators is a specialist company for generator radiator repair, radiator manufacturing, radiator recoring and industrial cooling solutions.
FAQ — Cummins DG Set Radiator Repair Mumbai
Yes — header tank cracks on Cummins K19 radiators are a common and very repairable failure. We clean the crack area, solder or braze the joint, and pressure test the radiator to operating pressure. If the header tank is severely cracked or corroded at multiple points, we fabricate and replace the tank entirely. The K19 is one of the Cummins engines we service most frequently at our Worli workshop.
Yes. We repair aluminium Cummins radiators by TIG welding for cracks and epoxy for minor pinhole leaks. For KTA38 and KTA50 sets running 24×7 in data centres, hospitals, or factories, we strongly recommend replacing the aluminium core with a copper-brass core — better corrosion resistance, easier repair if needed again, and longer service life in Mumbai's coastal humidity.
Minor leak repairs (header crack, hose joint): 1–2 working days. Core recoring for 125–500 KVA Cummins sets (6BTA, QSL9, K19): 2–4 working days. Larger radiators (KTA38, KTA50) or new radiator manufacture: 5–7 working days. We give you a confirmed timeline after receiving and inspecting the radiator at our Worli workshop.
Yes. We manufacture new copper-brass and aluminium radiators for all Cummins DG set models including the K19 (500 KVA). Share your Cummins engine model number and DG set KVA on WhatsApp — we confirm the specification and pricing within a few hours. Most Cummins models up to 500 KVA can be ready in 3–5 working days.
Internal scale and rust buildup inside the copper or aluminium tubes is the most common cause — the core becomes partially blocked, reducing coolant flow without any external leakage. This is particularly common on QSL9 and K19 sets running on untreated or old coolant. Flushing and descaling often restores full cooling capacity. If the core is severely blocked or corroded, recoring is the next step.
For Cummins DG sets running 8 or more hours per day — especially in data centres, hospitals, or factories in Mumbai — the copper-brass upgrade is strongly worth it. Aluminium cores on continuous-duty sets in coastal Mumbai develop pinhole leaks from 5–7 years onwards. Copper-brass lasts significantly longer, is easier and cheaper to repair if needed, and gives better heat rejection at high load. The upgrade cost is recovered within 2–3 repair cycles avoided.
Cummins DG Set Radiator Problem? Get a Fast Estimate.
Share your Cummins engine model, KVA rating, and radiator photos on WhatsApp — we reply within the hour with an estimate.
