Hitachi EX200 Super Radiator
4 Row · 22mm · Copper-Brass Engine Cooling Radiator
Engine cooling radiator for the Hitachi / Tata Hitachi EX200 Super hydraulic excavator. Ajanta Radiators supplies the complete assembly, core-only replacement, or a fully custom-built unit manufactured to your existing radiator's dimensions — copper-brass, tube-and-fin construction, built and tested in Mumbai.
At a Glance
Built to Keep the EX200 Super Running Cool
The engine cooling radiator on the Hitachi EX200 Super dissipates heat from the engine coolant circuit, keeping the Isuzu-family diesel engine within safe operating temperature during continuous excavation, loading and site work. The unit referenced in trade catalogues for this machine is a 4 row, copper-brass, tube-and-fin radiator built around 22mm tubes — a construction chosen for excavators because copper-brass cores are field-repairable: a damaged tube or leaking joint can typically be re-soldered rather than requiring a full replacement, which matters on a machine that often works away from a dealer network.
Ajanta Radiators supplies this radiator three ways: as a complete assembly (core, top tank, bottom tank, mounting brackets and inlet/outlet necks), as a core-only replacement where your existing tanks and brackets are reused, or as a custom-manufactured unit built to the dimensions of your existing radiator or a sample you send us. All three routes are manufactured and pressure-tested at our Mumbai works.
Reference Numbers
The table below lists reference numbers associated with this radiator in trade catalogues and parts listings. Each is labelled by verification status — none should be treated as a confirmed OEM Hitachi part number unless stated.
| Reference | Component | Type | Status |
|---|---|---|---|
| TA20307/1 | Radiator Assembly | Assembly reference | Not independently verified |
| TA20307/2 | Radiator Core | Core reference | Not independently verified |
| CSDEG143 | Radiator Core | Core/internal reference | Not independently verified |
| 2890092 | Radiator | Aftermarket cross-reference | Listed as EX200 Super radiator by an independent Indian earthmoving-radiator supplier |
What We Know — and What Needs Confirming
| Brand | Hitachi / Tata Hitachi |
| Machine | EX200 Super |
| Machine family | EX200 |
| Component | Engine Cooling Radiator |
| Construction | Copper-Brass Tube & Fin |
| Core | 4 Row (varies according to machine generation) |
| Tube specification | 22 mm (varies according to machine generation) |
| Possible engine | Isuzu 6BD1 family — confirm against your machine's engine plate and serial number |
| Overall dimensions, core size, tank size, inlet/outlet diameter, weight, pressure rating | Not independently verified — see Dimensions below |
Confirm Before Manufacturing
Authoritative dimensional drawings for TA20307/1, TA20307/2, CSDEG143 or the EX200 Super radiator core were not located in this research. Rather than estimate, we ask customers to confirm exact dimensions against the existing radiator, a machine serial number lookup, or a physical sample before we manufacture.
Radiator Reference Images
Product views and detail crops below were prepared from the supplied radiator photograph. They are suitable for identification and catalogue presentation; a true rear or full side photograph should only be added when an actual photograph of that view is available.

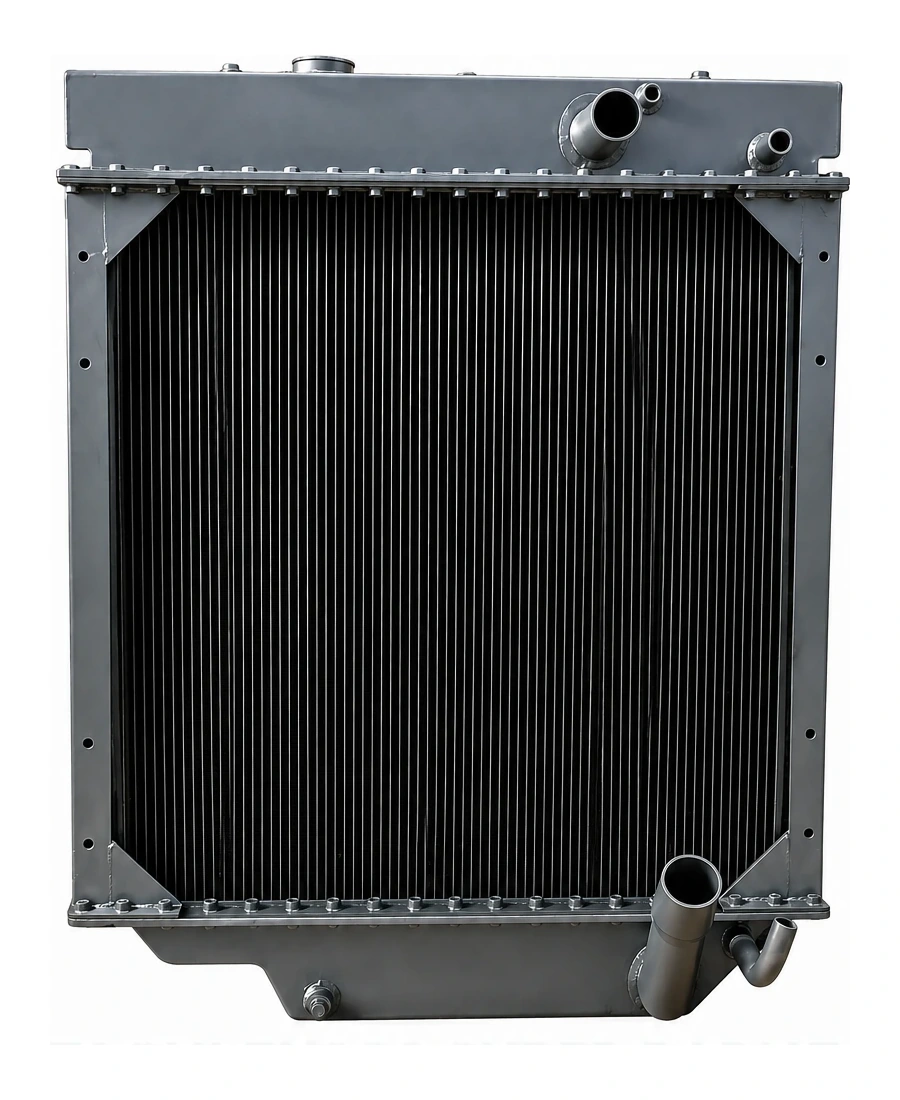

Front View
Clean product view showing the complete radiator assembly.
Product View

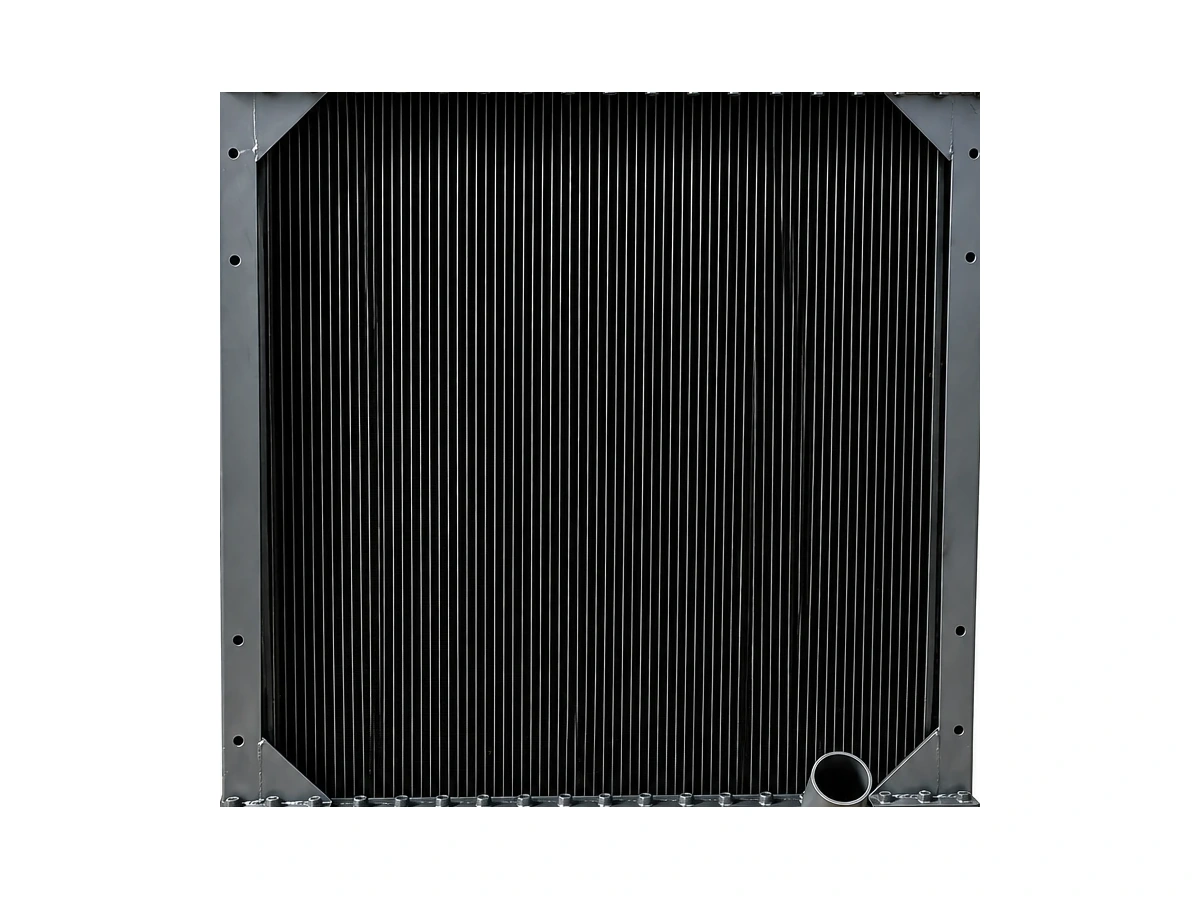

Core & Fin Detail
Close-up from the supplied product photograph showing the tube-and-fin core area.
Technical Detail

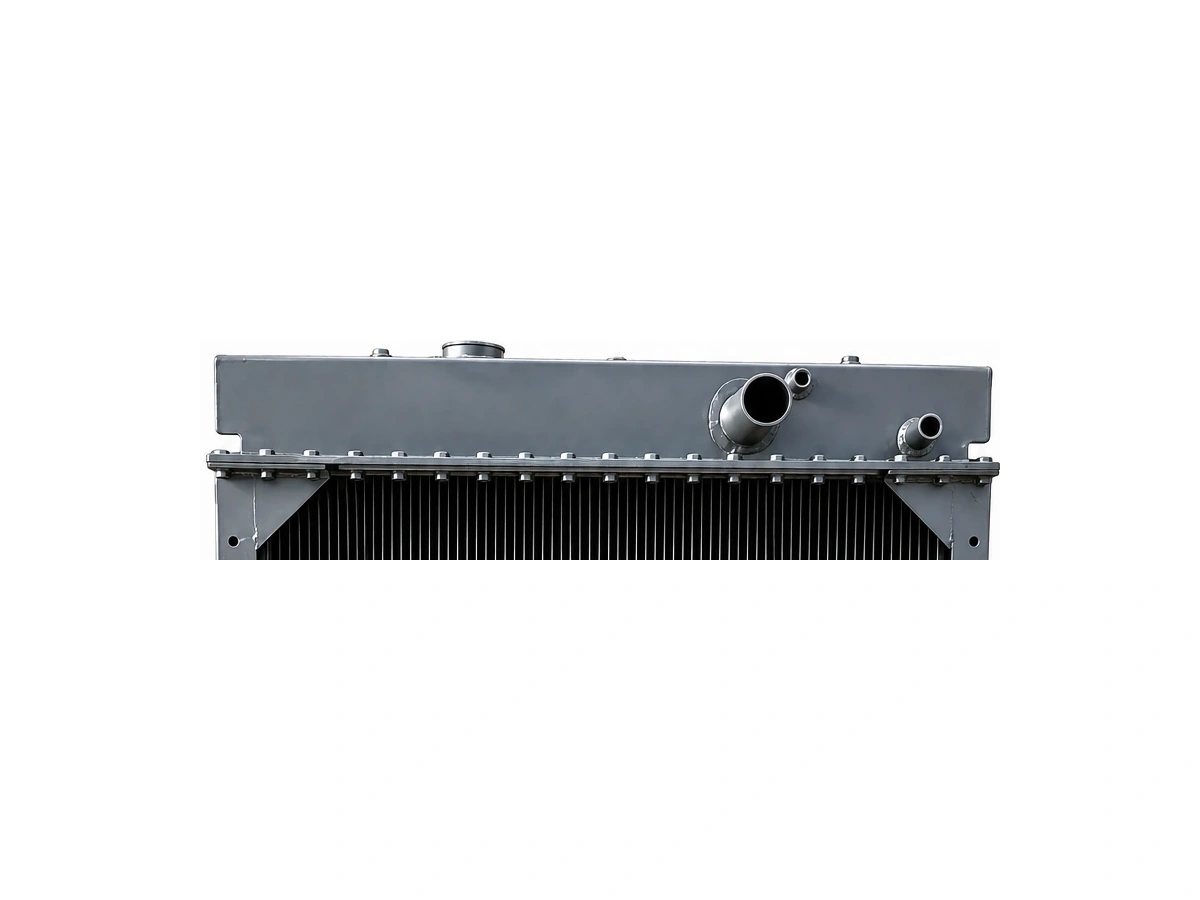

Upper Tank & Connections
Upper tank and visible pipe connections from the supplied radiator image.
Tank Detail

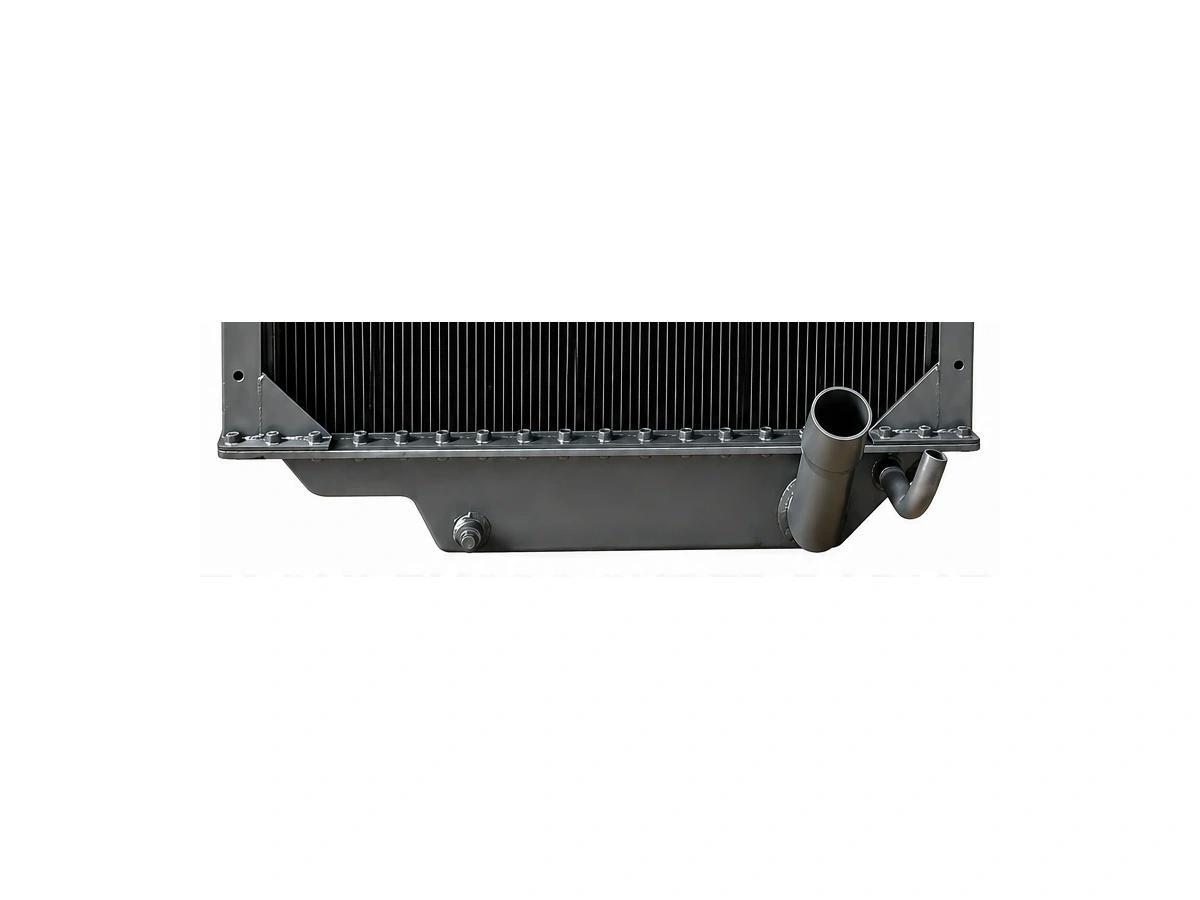

Lower Outlet & Bottom Tank
Lower outlet, bottom tank and adjacent pipework detail.
Outlet Detail

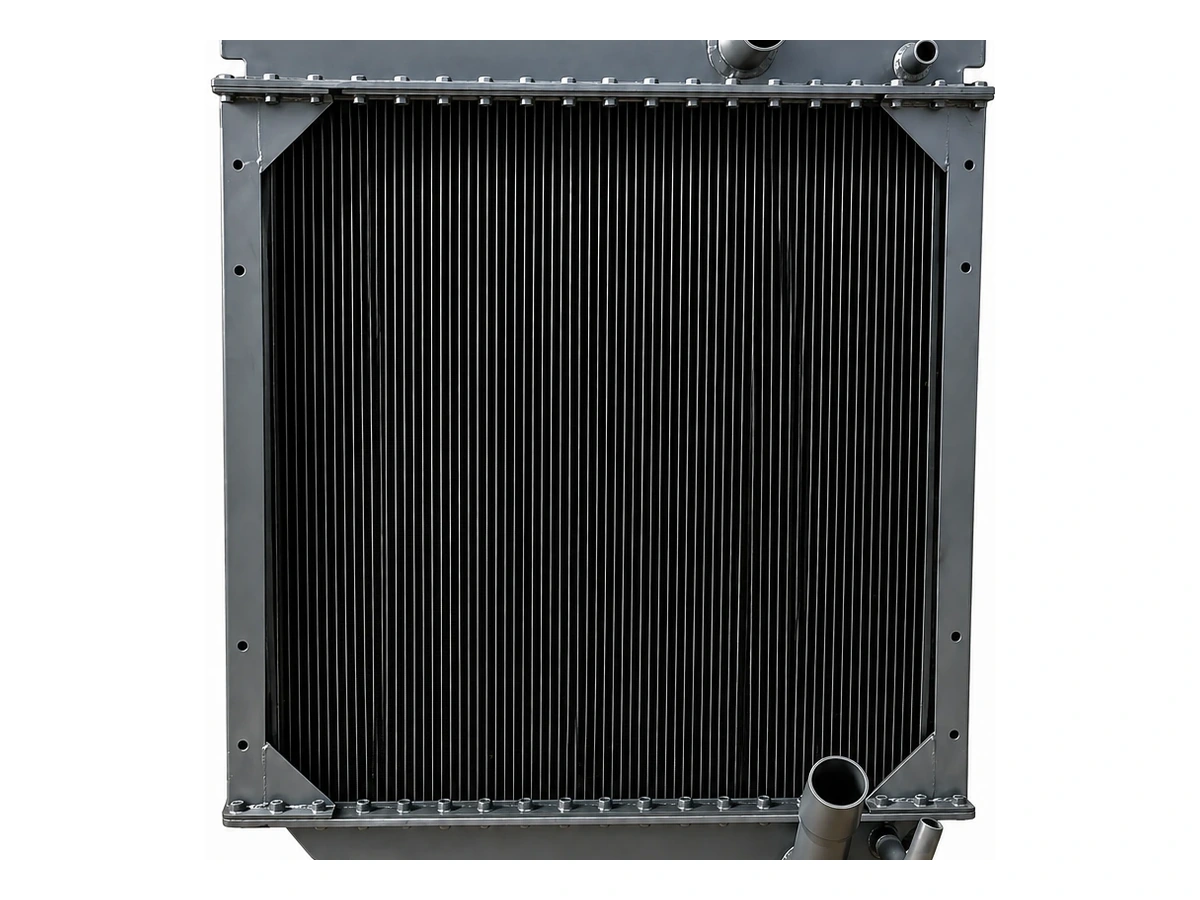

Mounting Frame & Brackets
Visible mounting frame and bracket areas from the supplied product photograph.
Mounting Detail

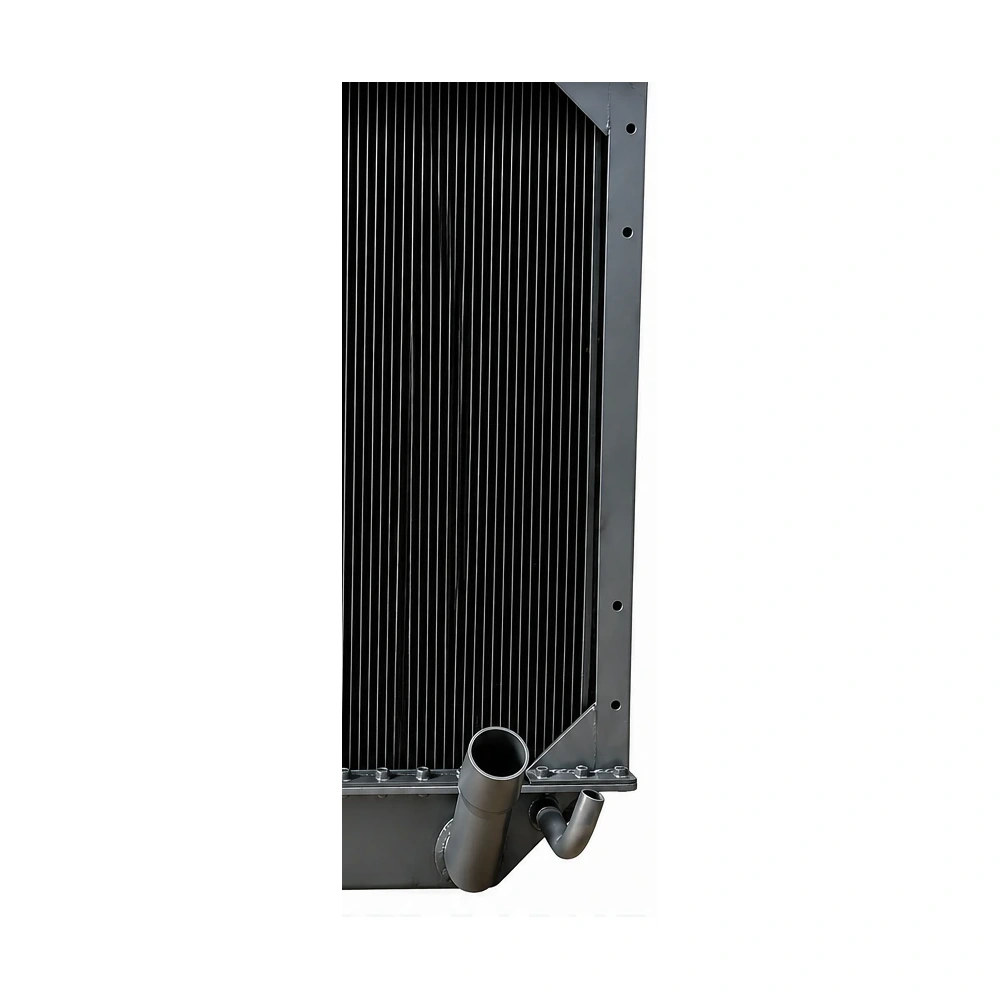

Right-Side / Outlet Detail
Right-side crop highlighting the outlet, side frame and nearby mounting area.
Side DetailTraditional Heavy-Duty Construction
- Field-repairable — tubes and joints can typically be re-soldered
- Core or tank can be replaced independently
- Well suited to custom and sample-based manufacturing
- The construction referenced for the EX200 Super in trade catalogues
Lighter, Welded Construction
- Lighter weight; common on later EX200 generations and aftermarket designs
- Typically a fully welded, non-repairable core
- Application-specific — fitment must be confirmed against your exact EX200 generation
- Not assumed interchangeable with the EX200 Super copper-brass unit
Three Ways We Can Help
Complete Radiator Assembly
Full replacement radiator — core, top and bottom tanks, mounting brackets and inlet/outlet necks — built to match your existing unit.
Radiator Core Replacement
Core-only replacement where your existing tanks and brackets are salvageable, reducing cost and turnaround.
Custom Manufactured Replacement
Built from your sample, photographs or dimensions when a direct off-the-shelf match isn't available.
Reduce the Risk of a Wrong Order
Radiator specifications vary across EX200 generations. Send us the following and our team will confirm fitment before manufacturing or dispatch:
- Machine model & generation
- Machine serial number
- Engine model
- Photograph of existing radiator
- Core dimensions
- Overall radiator dimensions
- Any part number visible on the unit
- Tank photographs
- Mounting bracket photographs
- Inlet/outlet diameter measurements
Hitachi EX200 Super Excavator
The EX200 Super is a hydraulic excavator in Hitachi's EX200 family, widely used in Indian construction, infrastructure and earthmoving fleets. Radiator specifications can vary by machine generation and engine fitted — always confirm your machine's model, serial number and radiator dimensions before ordering a replacement.
Manufactured & Tested in Mumbai
OEM-Grade Engineering
Built to match original dimensions for direct fitment.
Copper & Aluminium Capability
Both constructions manufactured in-house.
Sample & Dimension-Based Builds
Custom manufacturing when no off-the-shelf match exists.
Pressure Tested
Every radiator leak-checked before dispatch.
Hitachi EX200 Super Radiator FAQ
Need a Hitachi EX200 Super Radiator?
Send us your existing radiator photograph, machine model, part number or dimensions and the Ajanta Radiators team will help identify the correct replacement.
